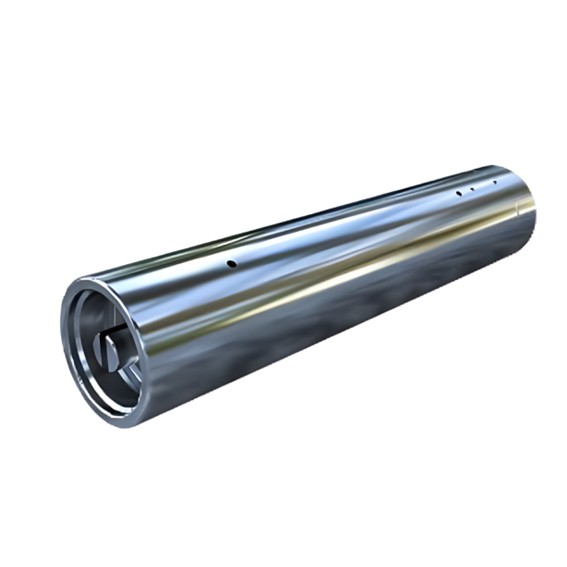

Φ38mm High temperature Motor
Φ38mm High temperature Motor
Φ38mm High temperature Motor

Φ38mm High temperature Motor

Item No: RTBLDC-HT-Φ38-02
High temperature resistant, vibraton resistant, higher endurance, small size
    • Rated Power:  80W
    • Rated Volgate: 28VDC
    • Rated Current: 3.4A
    • Rated Speed: 3800 rpm
    • rated Torque: 0.2Nm
    • Unload Speed: 4500 rpm
    • Compressive Grade: 150Mpa
    • Rated Efficiency: > 80％
    • Working Temperature: 200℃
Inquiry Now
Detailed Description
Inquiry Now
  • The motor is comprehensively designed by combining theoretical calculation with finite element simulation calculation.
  •  We independently developed winding, winding detection, core pressing and wire threading and other processes.
  •  The full performance parameter test system (torque, speed, power) is jointly tested.
  •  High power density, high control accuracy, high reliability, and high-temperature and high-pressure resistant, with a series of adaptable working conditions.
  •  The types are serialized (DC brushless motor, torque motor), the output torque, speed and power are serialized, and the adaptable temperature is serialized: -40℃ to 205℃.


They are used for:

Core Power Unit of MWD Rotary Pulser
